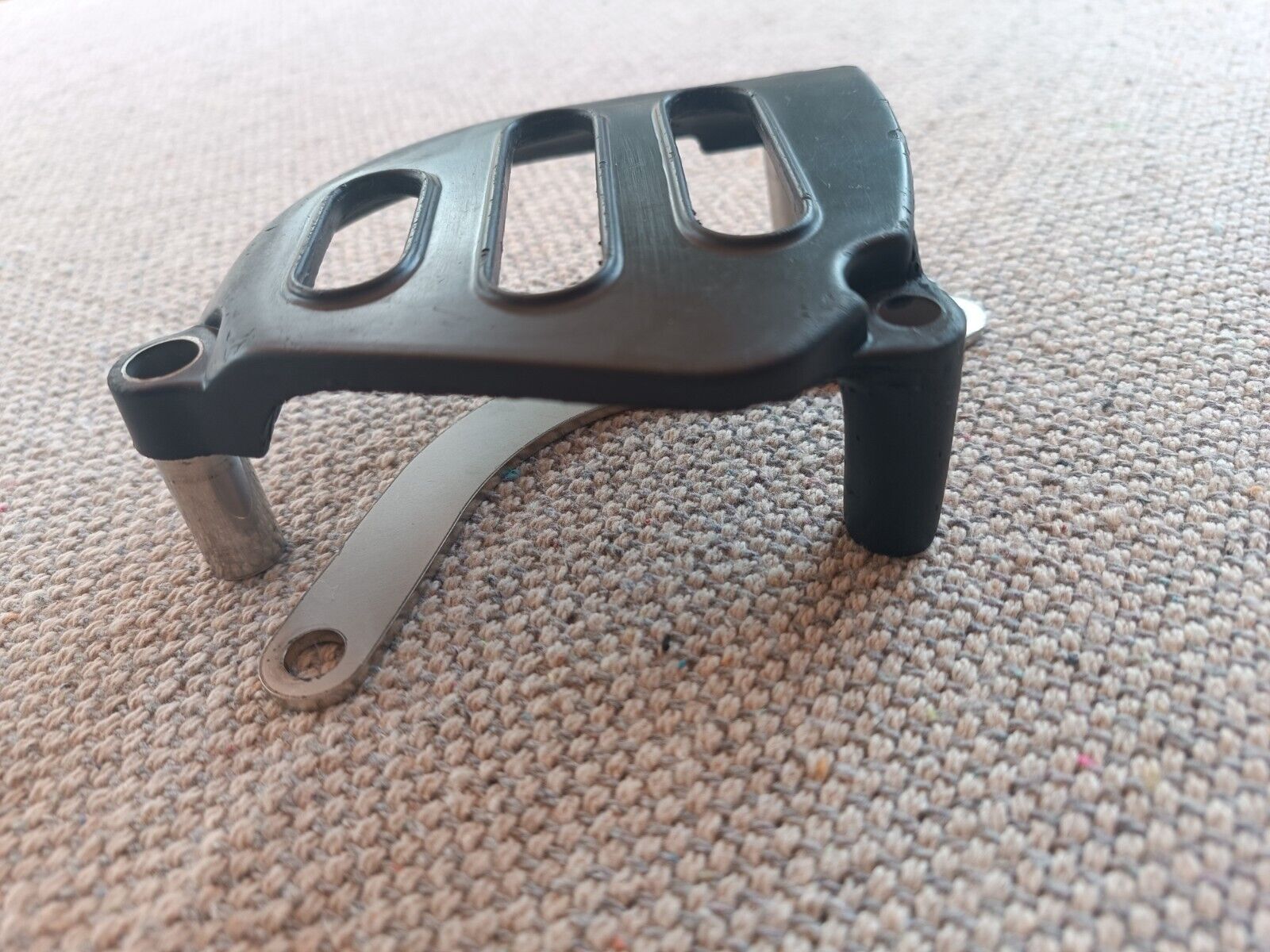

Suzuki 1980-1981 PE250 RM400 RM250 RS250 engine sprocket cover kit 11360-40401

Description

Remanufactured using Sika P180 epoxy resin.

Stainless steel bushes moulded with the product, not added afterwards. Lower mounting hole has been strengthened compared with the original.

NB – use locktite or something similar to lock the bolts.

The blade is for 13 tooth front sprocket, it could be ground away to accommodate a bigger front sprocket. Part Number 2764140300.

Mounting bushes are included for the two 8mm bolts which are not included as it will just push up the shipment costs. Part Number 0918008078. 8mm and 6mm bolts are all 55mm in length.

Engine Sprocket Cover 11360-40401 Suzuki PE250 RM400 RM250

COVER, ENGINE SPROCKET
11360-40401
1979 RM250, 1980 RM250, 1980 RM400, 1979 RM400, 1980 PE250, 1981 PE250, RS250 (If you are not sure which years – double check your model)

PE400 1980 and 1981
I am not sure if this will work, as the bolt hole is not available like the PE250 – check your bike to see if the top mounting hole has a thread. Both my PE400 motors do not have the thread there.

Fits:
PE250 1980 (T) (E01 E02 E04 E15 E21 E24)
PE250 1980 (T) USA (E03)
PE250 1981 (X) (E01 E02 E04 E15 E21 E24)
PE250 1981 (X) USA (E03)
PE400 1980 (T) (E01 E02 E15 E24)
PE400 1980 (T) USA (E03)
PE400 1981 (X) (E01 E02 E06 E15 E24)
PE400 1981 (X) USA (E03)
RM250 1980 (T) USA (E03)
RM400 1980 (T) USA (E03)
RS250 1980 (T) USA (E03)
RS250 1981 (X) USA (E03)
